Random forest for point-wise classification in the Hessigheim March2018 dataset

Data

The point clouds used in this example are available in the official webpage of the dataset.

JSON

The many JSON files and the bash script used to launch them in the FinisTerrae-III supercomputer of the Galicia supercomputing center (CESGA) are shown below. Note that the bash script for the FinisTerra-III is written to work with a slurm workload manager.

Data mining JSON

The JSON below can be used to compute geometric and height features as well as smoothed features derived from reflectance and color information.

{
  "in_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/data/Mar18_train.laz",
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/data/Mar18_val.laz"
  ],
  "out_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/mined/Mar18_train_mined_*",
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/mined/Mar18_val_mined_*"
  ],
  "sequential_pipeline": [
    {
      "miner": "HSVFromRGB",
      "hue_unit": "radians",
      "frenames": ["HSV_Hrad", "HSV_S", "HSV_V"]
    },
    {
      "miner": "HeightFeatures",
      "support_chunk_size": 200,
      "support_subchunk_size": 20,
      "pwise_chunk_size": 10000,
      "nthreads": 10,
      "neighborhood": {
        "type": "Rectangular2D",
        "radius": 50.0,
        "separation_factor": 0.35
      },
      "outlier_filter": null,
      "fnames": ["floor_distance"]
    },
    {
      "miner": "SmoothFeatures",
      "chunk_size": 1000000,
      "subchunk_size": 1000,
      "neighborhood": {
        "type": "sphere",
        "radius": 0.25
      },
      "input_fnames": ["Reflectance", "HSV_Hrad", "HSV_S", "HSV_V"],
      "fnames": ["mean"],
      "nthreads": 24
    },
    {
      "miner": "SmoothFeatures",
      "chunk_size": 1000000,
      "subchunk_size": 1000,
      "neighborhood": {
        "type": "sphere",
        "radius": 1.0
      },
      "input_fnames": ["Reflectance", "HSV_Hrad", "HSV_S", "HSV_V"],
      "fnames": ["mean"],
      "nthreads": 16
    },
    {
      "miner": "SmoothFeatures",
      "chunk_size": 1000000,
      "subchunk_size": 1000,
      "neighborhood": {
        "type": "sphere",
        "radius": 3.0
      },
      "input_fnames": ["Reflectance", "HSV_Hrad", "HSV_S", "HSV_V"],
      "fnames": ["mean"],
      "nthreads": 12
    },
    {
      "miner": "GeometricFeatures",
      "radius": 0.125,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 0.25,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 0.5,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 0.75,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 1.0,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 2.0,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 3.0,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },
    {
      "miner": "GeometricFeatures",
      "radius": 5.0,
      "fnames": ["linearity", "planarity", "sphericity", "surface_variation", "omnivariance", "verticality", "anisotropy", "eigenentropy", "eigenvalue_sum"]
    },

    {
      "writer": "Writer",
      "out_pcloud": "*feats.las"
    }
  ]
}

Training JSON

The training JSON considers geometric, height, reflectance, and color features to train a random forest classifier with an auto validation training strategy. The trained model is exported together with the data imputation components to a predictive pipeline.

{
  "in_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/mined/Mar18_train_mined_feats.las"
  ],
  "out_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/rf_hessig/*"
  ],
  "sequential_pipeline": [
    {
      "imputer": "UnivariateImputer",
      "fnames": [
        "Reflectance", "HSV_Hrad", "HSV_S", "HSV_V",
        "Reflectance_mean_r0.25", "Reflectance_mean_r1.0", "Reflectance_mean_r3.0",
        "HSV_Hrad_mean_r0.25", "HSV_Hrad_mean_r1.0", "HSV_Hrad_mean_r3.0",
        "HSV_S_mean_r0.25", "HSV_S_mean_r1.0", "HSV_S_mean_r3.0",
        "HSV_V_mean_r0.25", "HSV_V_mean_r1.0", "HSV_V_mean_r3.0",
        "floor_distance_r50.0_sep0.35", "linearity_r0.125", "planarity_r0.125",
        "sphericity_r0.125", "surface_variation_r0.125", "omnivariance_r0.125",
        "verticality_r0.125", "anisotropy_r0.125", "eigenentropy_r0.125",
        "eigenvalue_sum_r0.125", "linearity_r0.25", "planarity_r0.25",
        "sphericity_r0.25", "surface_variation_r0.25", "omnivariance_r0.25",
        "verticality_r0.25", "anisotropy_r0.25", "eigenentropy_r0.25",
        "eigenvalue_sum_r0.25", "linearity_r0.5", "planarity_r0.5",
        "sphericity_r0.5", "surface_variation_r0.5", "omnivariance_r0.5",
        "verticality_r0.5", "anisotropy_r0.5", "eigenentropy_r0.5",
        "eigenvalue_sum_r0.5", "linearity_r0.75", "planarity_r0.75",
        "sphericity_r0.75", "surface_variation_r0.75", "omnivariance_r0.75",
        "verticality_r0.75", "anisotropy_r0.75", "eigenentropy_r0.75",
        "eigenvalue_sum_r0.75", "linearity_r1.0", "planarity_r1.0",
        "sphericity_r1.0", "surface_variation_r1.0", "omnivariance_r1.0",
        "verticality_r1.0", "anisotropy_r1.0", "eigenentropy_r1.0",
        "eigenvalue_sum_r1.0", "linearity_r2.0", "planarity_r2.0",
        "sphericity_r2.0", "surface_variation_r2.0", "omnivariance_r2.0",
        "verticality_r2.0", "anisotropy_r2.0", "eigenentropy_r2.0",
        "eigenvalue_sum_r2.0", "linearity_r3.0", "planarity_r3.0",
        "sphericity_r3.0", "surface_variation_r3.0", "omnivariance_r3.0",
        "verticality_r3.0", "anisotropy_r3.0", "eigenentropy_r3.0",
        "eigenvalue_sum_r3.0", "linearity_r5.0", "planarity_r5.0",
        "sphericity_r5.0", "surface_variation_r5.0", "omnivariance_r5.0",
        "verticality_r5.0", "anisotropy_r5.0", "eigenentropy_r5.0",
        "eigenvalue_sum_r5.0"
      ],
      "target_val": "NaN",
      "strategy": "mean",
      "constant_val": 0
    },
    {
      "train": "RandomForestClassifier",
      "fnames": [
        "Reflectance", "HSV_Hrad", "HSV_S", "HSV_V",
        "Reflectance_mean_r0.25", "Reflectance_mean_r1.0", "Reflectance_mean_r3.0",
        "HSV_Hrad_mean_r0.25", "HSV_Hrad_mean_r1.0", "HSV_Hrad_mean_r3.0",
        "HSV_S_mean_r0.25", "HSV_S_mean_r1.0", "HSV_S_mean_r3.0",
        "HSV_V_mean_r0.25", "HSV_V_mean_r1.0", "HSV_V_mean_r3.0",
        "floor_distance_r50.0_sep0.35", "linearity_r0.125", "planarity_r0.125",
        "sphericity_r0.125", "surface_variation_r0.125", "omnivariance_r0.125",
        "verticality_r0.125", "anisotropy_r0.125", "eigenentropy_r0.125",
        "eigenvalue_sum_r0.125", "linearity_r0.25", "planarity_r0.25",
        "sphericity_r0.25", "surface_variation_r0.25", "omnivariance_r0.25",
        "verticality_r0.25", "anisotropy_r0.25", "eigenentropy_r0.25",
        "eigenvalue_sum_r0.25", "linearity_r0.5", "planarity_r0.5",
        "sphericity_r0.5", "surface_variation_r0.5", "omnivariance_r0.5",
        "verticality_r0.5", "anisotropy_r0.5", "eigenentropy_r0.5",
        "eigenvalue_sum_r0.5", "linearity_r0.75", "planarity_r0.75",
        "sphericity_r0.75", "surface_variation_r0.75", "omnivariance_r0.75",
        "verticality_r0.75", "anisotropy_r0.75", "eigenentropy_r0.75",
        "eigenvalue_sum_r0.75", "linearity_r1.0", "planarity_r1.0",
        "sphericity_r1.0", "surface_variation_r1.0", "omnivariance_r1.0",
        "verticality_r1.0", "anisotropy_r1.0", "eigenentropy_r1.0",
        "eigenvalue_sum_r1.0", "linearity_r2.0", "planarity_r2.0",
        "sphericity_r2.0", "surface_variation_r2.0", "omnivariance_r2.0",
        "verticality_r2.0", "anisotropy_r2.0", "eigenentropy_r2.0",
        "eigenvalue_sum_r2.0", "linearity_r3.0", "planarity_r3.0",
        "sphericity_r3.0", "surface_variation_r3.0", "omnivariance_r3.0",
        "verticality_r3.0", "anisotropy_r3.0", "eigenentropy_r3.0",
        "eigenvalue_sum_r3.0", "linearity_r5.0", "planarity_r5.0",
        "sphericity_r5.0", "surface_variation_r5.0", "omnivariance_r5.0",
        "verticality_r5.0", "anisotropy_r5.0", "eigenentropy_r5.0",
        "eigenvalue_sum_r5.0"
      ],
      "training_type": "autoval",
      "random_seed": null,
      "shuffle_points": true,
      "num_folds": 5,
      "model_args": {
        "n_estimators": 360,
        "criterion": "entropy",
        "max_depth": 25,
        "min_samples_split": 32,
        "min_samples_leaf": 8,
        "min_weight_fraction_leaf": 0.0,
        "max_features": "sqrt",
        "max_leaf_nodes": null,
        "min_impurity_decrease": 0.0,
        "bootstrap": true,
        "oob_score": false,
        "n_jobs": 32,
        "warm_start": false,
        "class_weight": "balanced_subsample",
        "ccp_alpha": 0.0,
        "max_samples": 0.3
      },
      "autoval_metrics": ["OA", "P", "R", "F1", "IoU", "wP", "wR", "wF1", "wIoU", "MCC", "Kappa"],
      "stratkfold_report_path": "*report/RF_stratkfold_report.log",
      "stratkfold_plot_path": "*plot/RF_stratkfold_plot.svg",
      "importance_report_path": "*report/RF_importance.log",
      "importance_report_permutation": false,
      "decision_plot_path": "*plot/RF_decision.svg",
      "decision_plot_trees": 3,
      "decision_plot_max_depth": 5
    },
    {
      "writer": "PredictivePipelineWriter",
      "out_pipeline": "*pipe/rf_hessig.pipe",
      "include_writer": false,
      "include_imputer": true,
      "include_feature_transformer": false,
      "include_miner": false
    }
  ]
}

Classification JSON

The classification JSON applies the predictive pipeline to previously unseen data to assess the model and the uncertainties.

{
  "in_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/mined/Mar18_val_mined_feats.las"
  ],
  "out_pcloud": [
    "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/rf_hessig/validation/*"
  ],
  "sequential_pipeline": [
    {
      "predict": "PredictivePipeline",
      "model_path": "/mnt/netapp2/Store_uscciaep/lidar_data/hessigheim/vl3d/rf_hessig/pipe/rf_hessig.pipe"
    },
    {
      "writer": "ClassifiedPcloudWriter",
      "out_pcloud": "*predicted.las"
    },
    {
      "eval": "ClassificationEvaluator",
      "class_names": ["Low vegetation", "Impervious surface", "Vehicle", "Urban furniture", "Roof", "Facade", "Shrub", "Tree", "Soil/Gravel", "Vertical surface", "Chimney"],
      "metrics": ["OA", "P", "R", "F1", "IoU", "wP", "wR", "wF1", "wIoU", "MCC", "Kappa"],
      "class_metrics": ["P", "R", "F1", "IoU"],
      "report_path": "*report/global_eval.log",
      "class_report_path": "*report/class_eval.log",
      "confusion_matrix_report_path" : "*report/confusion_matrix.log",
      "confusion_matrix_plot_path" : "*plot/confusion_matrix.svg",
      "class_distribution_report_path": "*report/class_distribution.log",
      "class_distribution_plot_path": "*plot/class_distribution.svg"
    },
    {
        "eval": "ClassificationUncertaintyEvaluator",
        "class_names": ["Low vegetation", "Impervious surface", "Vehicle", "Urban furniture", "Roof", "Facade", "Shrub", "Tree", "Soil/Gravel", "Vertical surface", "Chimney"],
        "include_probabilities": true,
        "include_weighted_entropy": true,
        "include_clusters": true,
        "weight_by_predictions": false,
        "num_clusters": 10,
        "clustering_max_iters": 128,
        "clustering_batch_size": 1000000,
        "clustering_entropy_weights": true,
        "clustering_reduce_function": "mean",
        "gaussian_kernel_points": 256,
        "report_path": "*uncertainty/uncertainty.las",
        "plot_path": "*uncertainty/"
    }
  ]
}

Bash script for slurm

The bash script below can be used at CESGA to queue a node with 32 cores and 246 GB RAM to execute the data mining, training, and classification JSONs with a maximum expected time of 48 hours.

#!/bin/bash
#SBATCH -N 1
#SBATCH -n 1
#SBATCH -c 32
#SBATCH -t 48:00:00
#SBATCH --mem 246GB
#SBATCH --mail-type=begin
#SBATCH --mail-type=end
#SBATCH [email protected]

# Author: Alberto M. Esmoris Pena
#
# Brief:    Script to use VL3D framework at CESGA'S FT-III
#           For urban semantic segmentation on the Hessigheim
#           dataset.


# ---  VARIABLES  --- #
# ------------------- #
VL3D_DIR='/home/usc/ci/aep/git/virtualearn3d/'
VL3D_SCRIPT='/home/usc/ci/aep/git/virtualearn3d/vl3d.py'
MINE_SPEC='/home/usc/ci/aep/git/virtualearn3d/cesga/hessigheim/rf_hessig_mine.json'
TRAINING_SPEC='/home/usc/ci/aep/git/virtualearn3d/cesga/hessigheim/rf_hessig_train.json'
PREDICTIVE_SPEC='/home/usc/ci/aep/git/virtualearn3d/cesga/hessigheim/rf_hessig_predict.json'

# ---  EXECUTION  --- #
# ------------------- #
# LOAD MODULES
module load cesga/system python/3.10
conda activate /mnt/netapp2/Store_uscciaep/vl3d_conda_env

# RUN SCRIPTS
cd "${VL3D_DIR}"
srun python ${VL3D_SCRIPT} --pipeline ${MINE_SPEC}
srun python ${VL3D_SCRIPT} --pipeline ${TRAINING_SPEC}
srun python ${VL3D_SCRIPT} --pipeline ${PREDICTIVE_SPEC}

Quantification

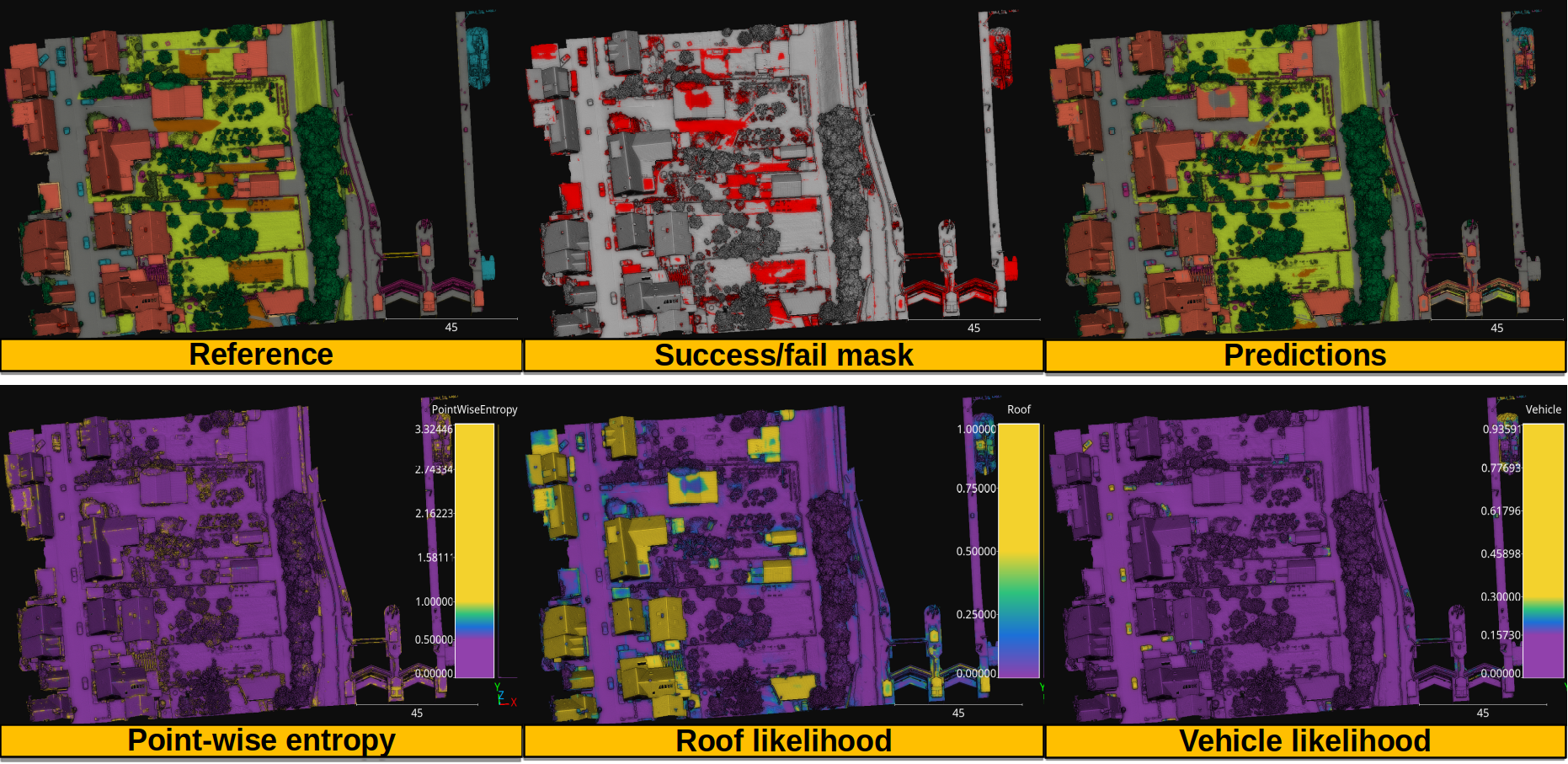

The table below shows the class-wise evaluation metrics.

CLASS

P

R

F1

IoU

Low vegetation

82.735

92.883

87.516

77.803

Impervious surface

86.374

90.859

88.560

79.468

Vehicle

90.981

25.079

39.319

24.470

Urban furniture

51.167

52.387

51.770

34.925

Roof

94.533

89.498

91.947

85.094

Facade

66.081

87.050

75.130

60.166

Shrub

63.518

50.608

56.333

39.211

Tree

92.247

96.023

94.097

88.853

Soil/Gravel

78.362

14.883

25.015

14.295

Vertical surface

92.356

47.138

62.418

45.368

Chimney

97.081

48.099

64.327

47.414

The table below shows the global evaluation metrics.

OA

P

R

F1

IoU

wP

wR

wF1

wIoU

MCC

Kappa

85.281

81.403

63.137

66.948

54.279

85.417

85.281

83.986

74.934

81.805

81.663

Visualization

The figure below shows the results of the previously explained pipelines.

Figure representing the references, predictions, entropies and likelihoods.

Visualization of the reference and predictions together with the binary fail/success mask. Also, the point-wise entropy and the likelihood for the roof and vehicle classes.

Application

This example has two main applications:

  1. Baseline model for urban semantic segmentation in 3D point clouds with machine learning.

  2. Exploring the adequateness of a given set of features for urban semantic segmentation. Since the machine learning model does not derive features but uses given features, it can be used to assess how well different sets of features perform.
